PLC Control Hot Laminating Press with Automated Conveying for Large-Format Aluminum Honeycomb & Carbon Fiber Composites at 100t Pressure

Product Categories
Foshan Henglihao Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

PLC Control Hot Laminating Press with Automated Conveying for Large-Format Aluminum Honeycomb & Carbon Fiber Composites at 100t Pressure

  • 1
  • 2
  • 3

Price : Online/offline communication

Brush motor : 1.1KW

Maximum temperature : 100℃

Hydraulic system motor power : 7.5KW

Place of Origin : China

Maximum pressure : 100t

Certification : CE、ISO 9001

Heating method : Electric heating heat transfer oil heat transfer

Delivery Time : 25-35Work days

Heating cycle motor : 3KW*2pcs

Plate thickness : 60mm*2pcs

Belt conveyor power : 3KW

Payment Terms : T/T

Total power : 164.6KW

Upstage fabric rolling motor : 1.5KW*2

Packaging Details : Film with Foam

Oil cylinders and quantity (piston cylinders) : 12PCS（70mm*100mm*300mm）

Heating system power : 90KW*2=180KW

Brand Name : Henrriet

Pressure plate size : 10000*1300mm

Actual composite maximum size : 9800*1200mm

MOQ : 1

Number of layers : 1-layer

Opening spacing : 0-300mm

Contact Now

Hot Laminating Press with PLC Control Production Line – Automated Conveying for Large‑Format Aluminum Honeycomb & Carbon Fiber Composites
Product Overview

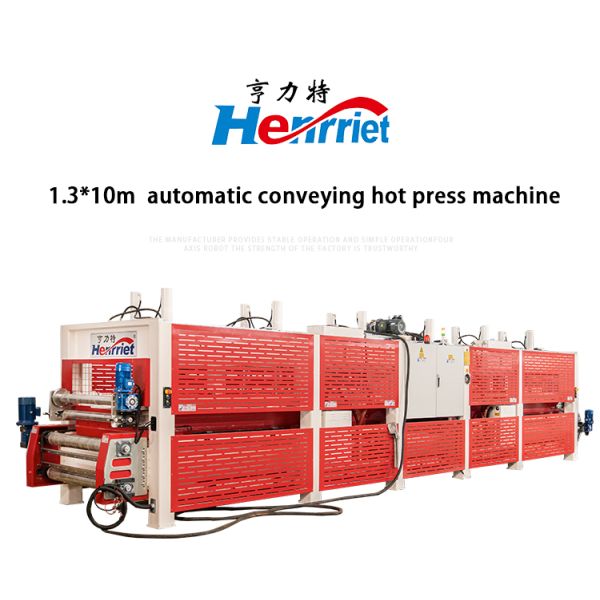

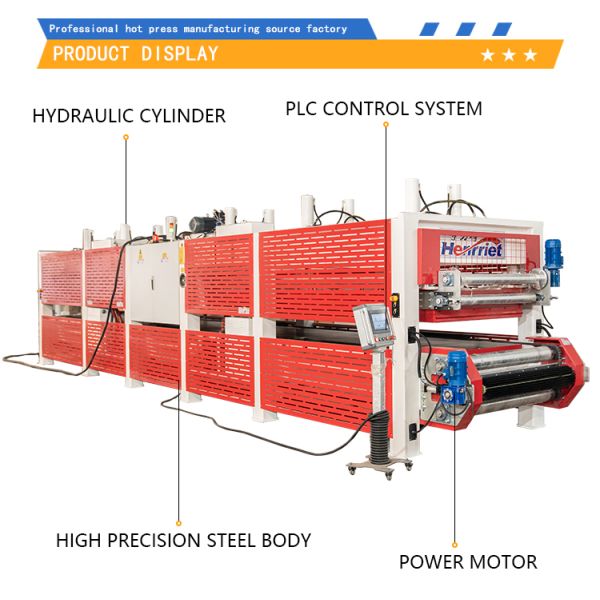

The 10-meter hot press automatic conveying production line is a large-scale composite manufacturing unit that integrates an ultra-long hot press with a fully synchronized material handling system. The core configuration includes a heavy-duty hot press mainframe, a 10-meter infeed conveyor, a discharge stacking device, precision temperature control heating loop, forced cooling and shaping section, and a PLC-based central control panel.

Key Features
  • Superior Production Capacity: Operates in completely uninterrupted mode with integrated conveyor mechanism for swift material handling, eliminating manual loading/unloading and minimizing non-productive time between cycles.
  • Integrated Safety and Protection: Fully enclosed guards and interlocked isolation barriers protect operators from high-temperature zones and moving mechanisms, with emergency stop buttons at all operator stations.
  • Wide-Ranging Application Versatility: Suitable for aluminum honeycomb panels (curtain walls, ceilings, rail transit, marine, aerospace), cleanroom/sanitary panels, and carbon fiber reinforced polymer (CFRP) molding.
  • Easy Maintenance and Technical Support: Routine upkeep procedures with no-load test runs to verify proper function of all transmission parts and safety devices.
Technical Specifications
Maximum pressure 100 Ton
Pressure plate size 10000*1300mm
Plate thickness 60mm*2pcs
Actual composite maximum size 9800*1200mm
Number of layers 1-layer
Opening spacing 0-300mm
Heating cycle motor 3KW*2pcs
Belt conveyor power 3KW
Brush motor 1.1KW
Upstage fabric rolling motor 1.5KW*2
Hydraulic system motor power 7.5KW
Oil cylinders and quantity (piston cylinders) 12PCS(70mm*100mm*300mm)
Heating system power 90KW*2=180KW
Heating method Electric heating heat transfer oil heat transfer
Maximum temperature 100℃
Total power 164.6KW
Company Advantages
  • Two In-House Factories: Better prices and faster delivery with no middlemen markups
  • 30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget
  • CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
  • 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam
  • 24-hour customer service hotline with 48-hour response to repair needs
  • Free video training for operators and process guidance manuals
  • Lifetime technical support and software upgrade services
